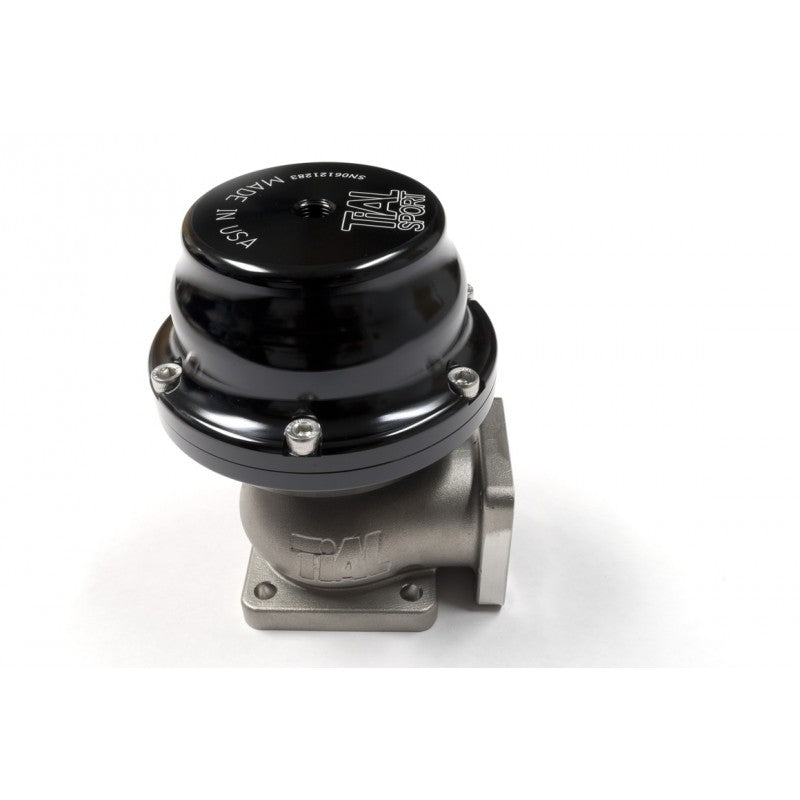

TiALSport F41 Wastegate -SEE OPTIONS

TiALSport F41 Wastegate -SEE OPTIONS

SKU:002809

Regular price $353.00 USD
Regular price Sale price $353.00 USD
Sale Sold out
Shipping calculated at checkout.
DUE TO THE CUSTOM-BUILT NATURE OF THE F-SERIES, LEAD TIMES MAY VARY.

The F41 replaces the legacy-model F40, and is unique in that it uses a 4-bolt flanged design for both inlet and outlet.

Technical Specifications:

- High temp based alloy valve housing will offer longer product life compared to competing designs.

- High temperature silicone reinforced actuator diaphragm.

- Stainless steel actuator spring gives consistent force at high temperature.

- Wear resistant Stainless Steel is used for the valve seat, and valve bushing.

- All Stainless Steel hardware.

- Mating weld flanges are 304L.

- M10 air signal ports for easy install.

- Compact design fits in very tight spaces.

Included in the package:

- F41 wastegate assembly

- All air fittings, CNC machined in-house, from stainless steel and aluminum.

- Weld flanges sold separately.
