***BLEM***TiALSport Q-Series Blow-Off Valve -CHOOSE OPTIONS

***BLEM***TiALSport Q-Series Blow-Off Valve -CHOOSE OPTIONS

SKU:002576B

Regular price $244.22 USD
Regular price Sale price $244.22 USD
Sale Sold out
Shipping calculated at checkout.

*BLEMISHED EXCESS INVENTORY - LIMITED QUANTITY*

*Other Spring and Weld Flange Options May Be Available By Request.  Please email Sales@tialsport.com to confirm other availability*

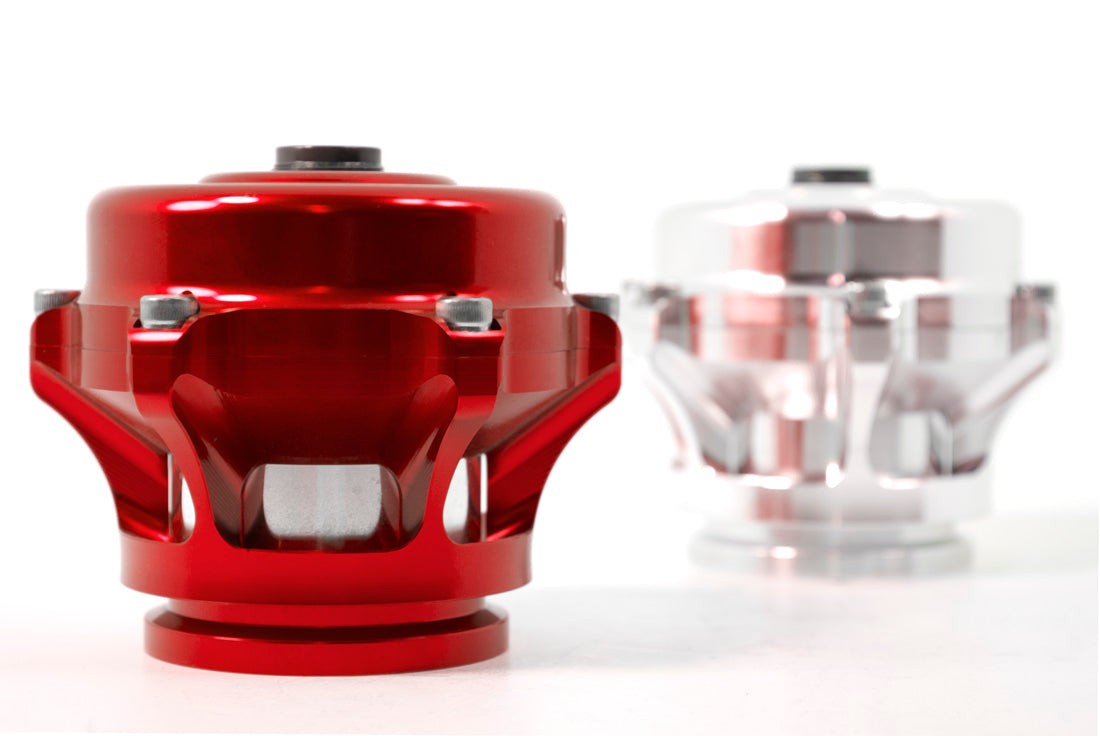

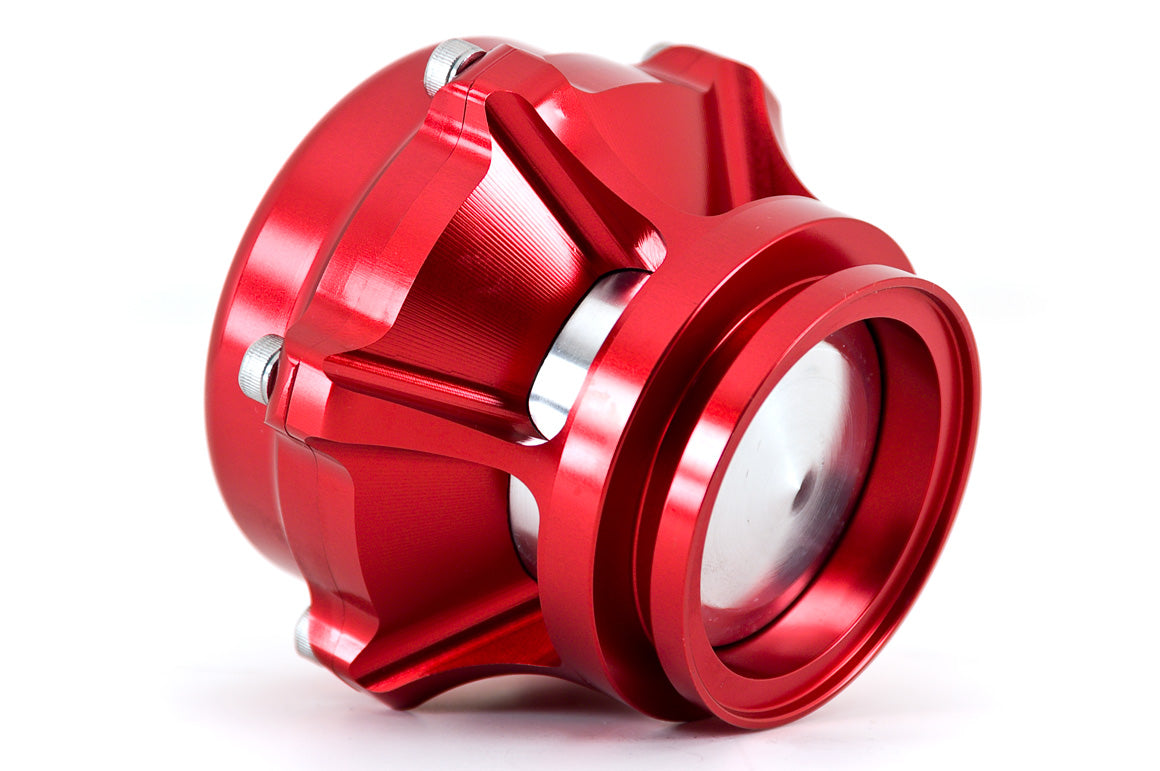

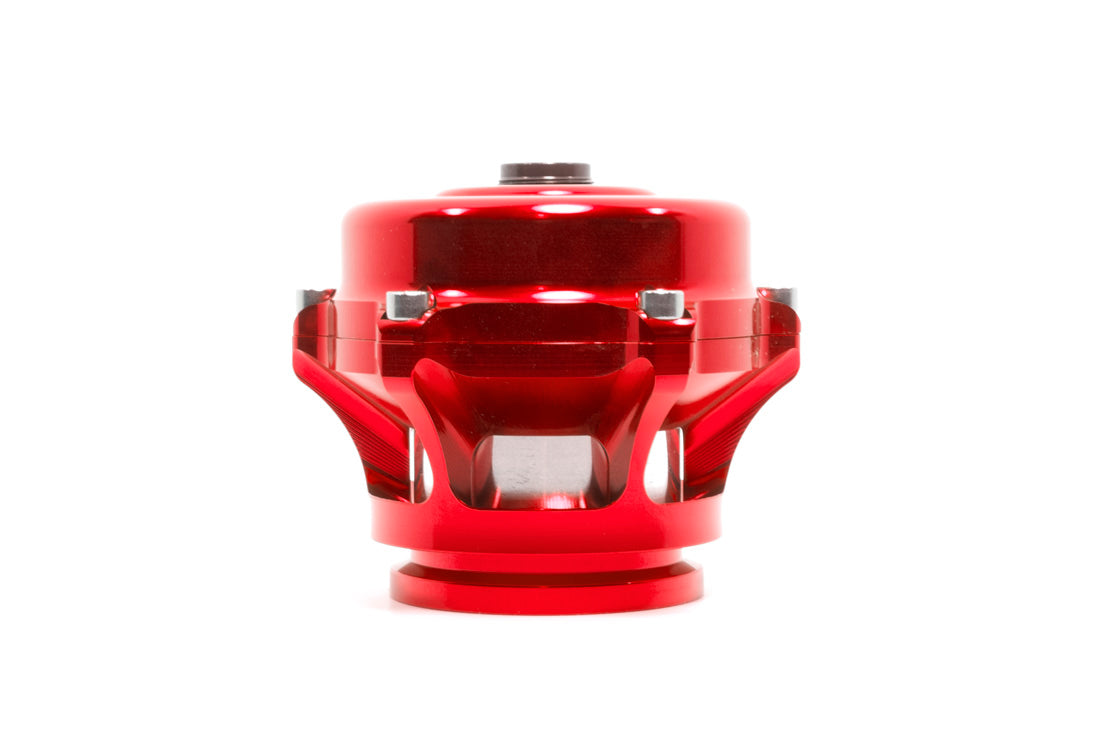

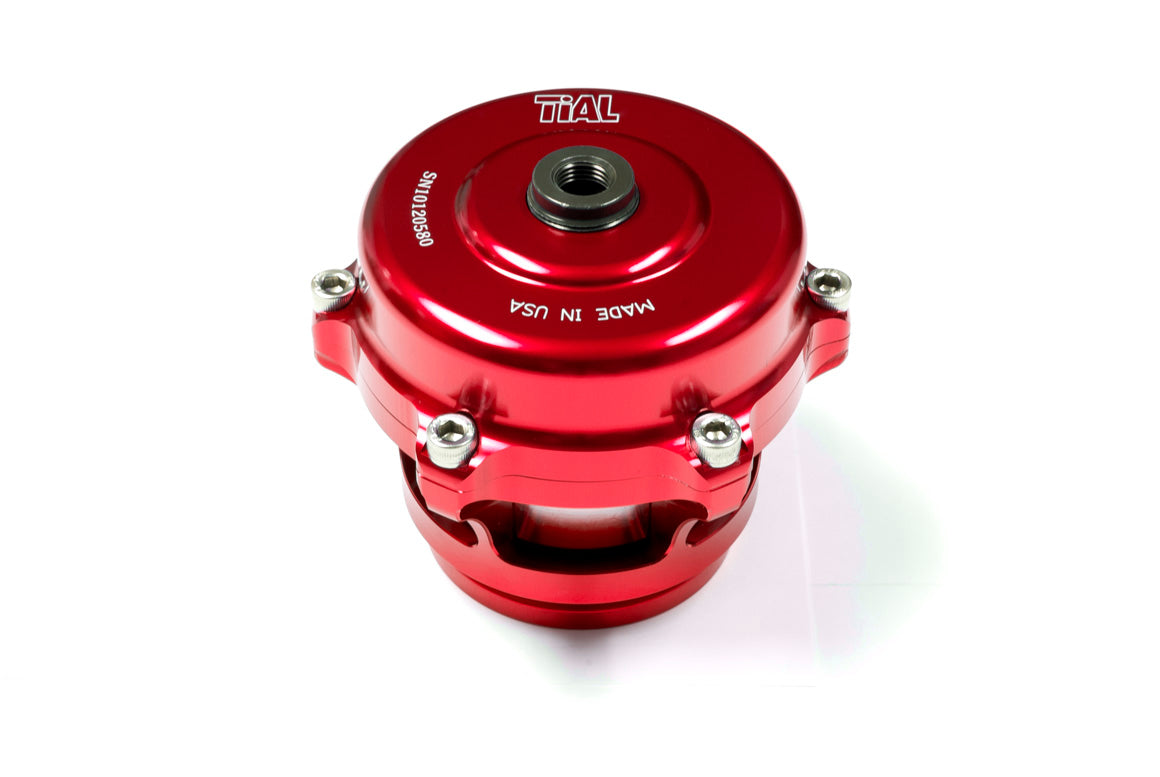

The first revision of TiAL's original BV50 blow-off valve, the Q Series flows 60% more than its predecessor and bolts to any standard TiAL flange without welding.

An included weld mounting flange (available in aluminum, mild steel, and stainless steel) cut for 2-1/2'' pipe and CNC machined aluminum V-band mounting clamp with stainless steel hardware create a durable corrosion-free appearance.

A banjo-type aluminum air fitting and bolt with 1/4" hose barb allow quick actuator response.

Springs available to accommodate various vacuum levels and supercharged applications.

YOU MUST SELECT YOUR COLOR, SPRING CHOICE, AND WELD FLANGE FROM THE DROP-DOWN MENU

Technical Specifications:

  • -For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.) The body and all internal components are CNC machined from aluminum alloy. It features a large 1.98'' (50.5mm) valve.
  • -The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long lasting, corrosion-free appearance.
  • -The valve seal utilizes a high temperature resistant o-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are hard anodize-coated for wear resistance.
  • -The Blow Off Valve also comes with a machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone reinforced diaphragm for long life.
  • -An aluminum weld base mounting flange is furnished with each unit

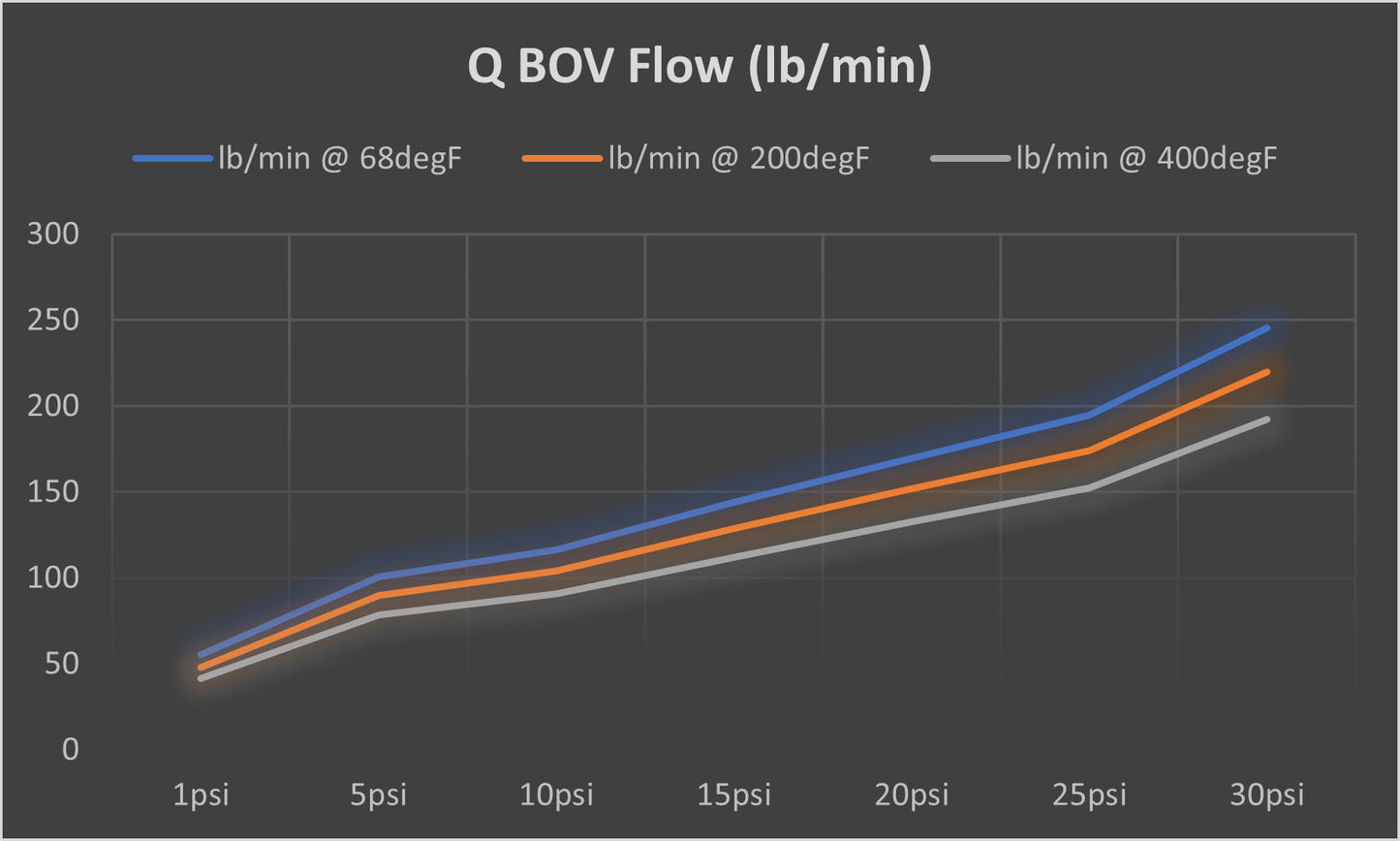

  • Through countless hours of R&D Tial was able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market
  • -A single Q BOV can support up to 1,800hp
  • -Anodized aluminum color options (Silver, Red, Blue, Purple, Black)
