TR87.264S Ball Bearing Turbocharger

TR87.264S Ball Bearing Turbocharger

008788

$2,016.00 USD
$2,016.00 USD
Sale Sold out
Shipping calculated at checkout.

With the brand new Xona Rotor HTE aero, optimized for high pressure ratios and extreme shaft speeds!

Component Details

  • Compressor wheel - 63.0mm Inducer / 87.2mm Exducer.
  • Turbine Outlet - 64mm UHF™
  • 500-900HP Applications.
  • Variable preload angular contact bearings.
  • Twin gas ring seals at the compressor and turbine.
  • High strength, lightweight stainless steel center housing.
  • Full hydraulic damping of the rotating assembly.
  • Integrated oil contaminate filter.
  • M62 race material allows higher temperature operation.
  • Metallic bearing cages.

Product Information

The revolutionary UHF™ aero XR64S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

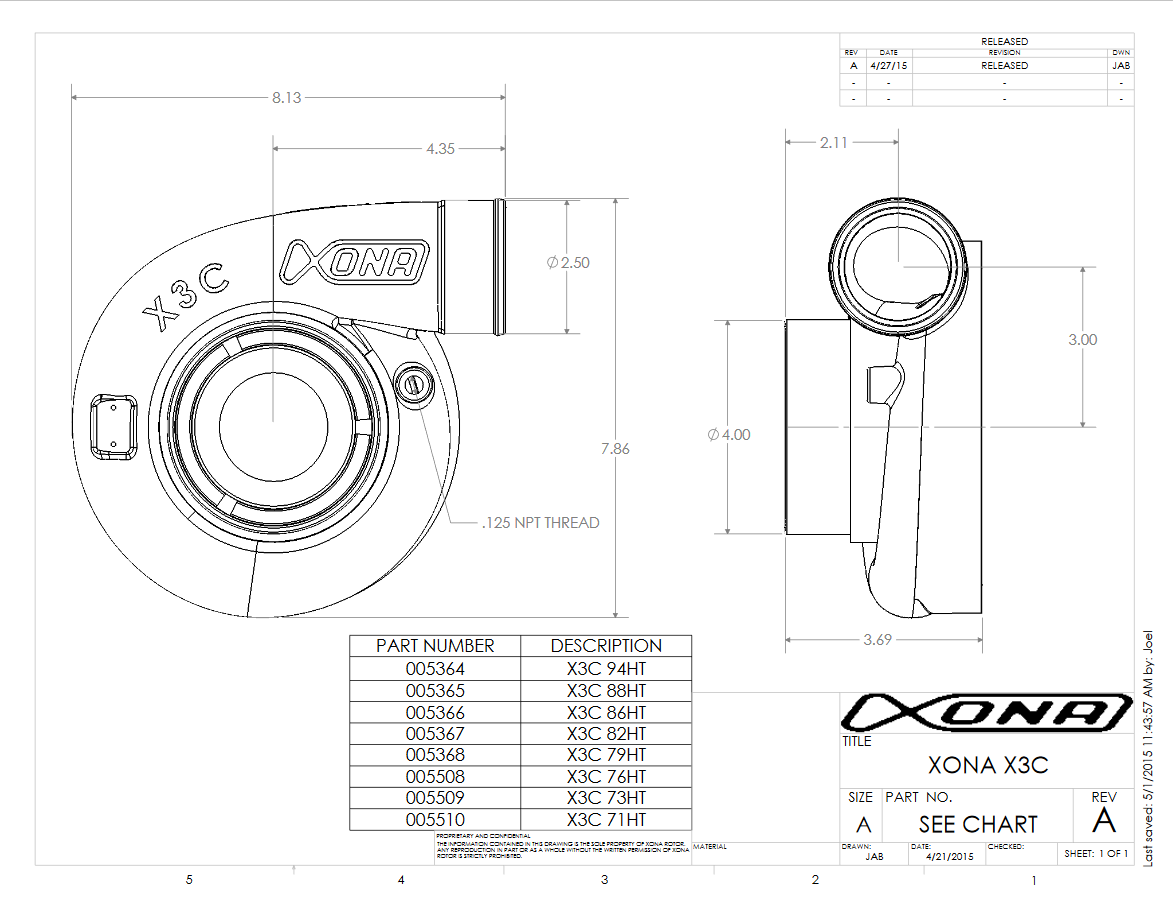

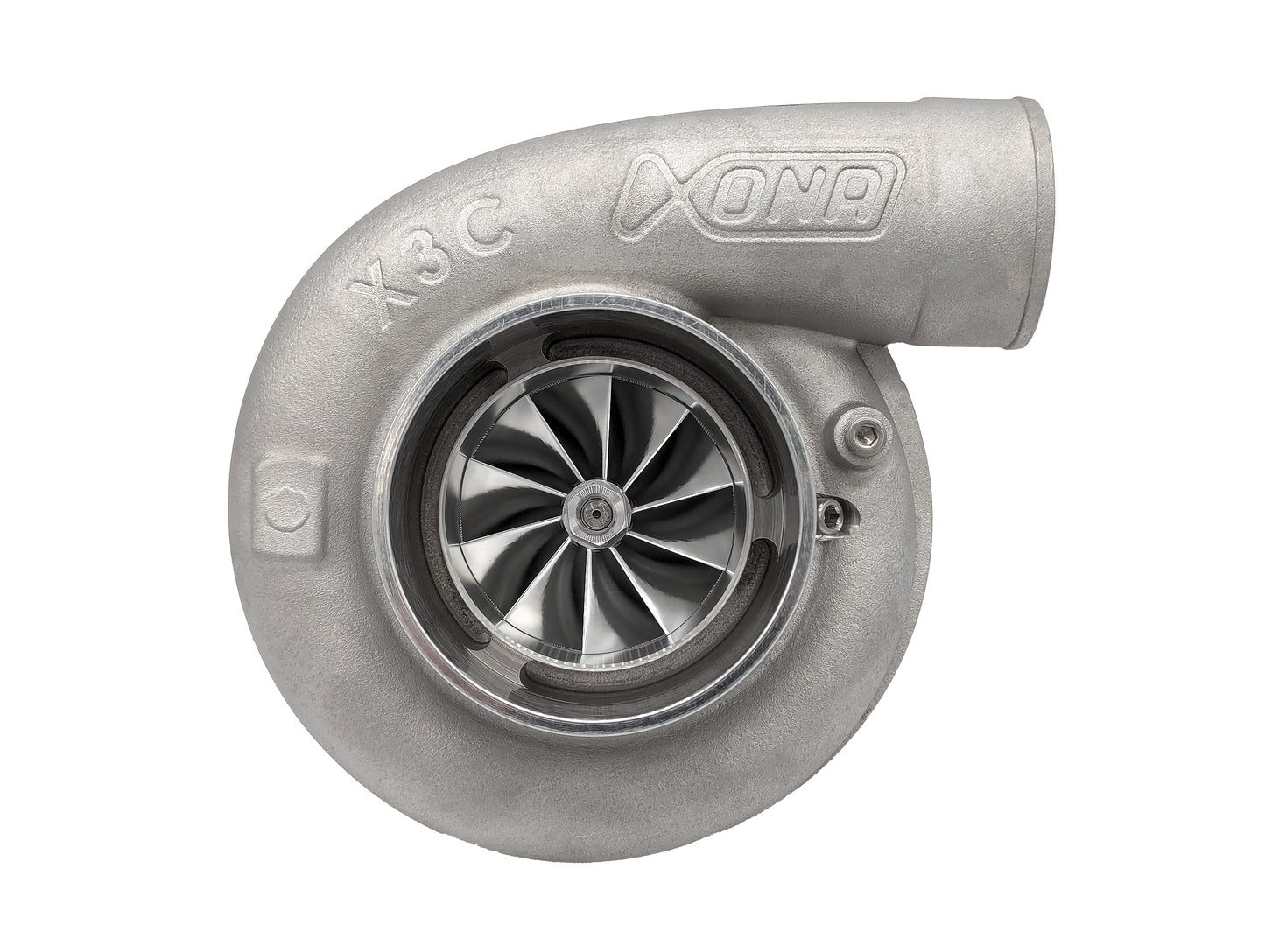

This turbocharger is available in the X3C Cover (picture is representative of compressor aero but not exact turbocharge specificaction)

Attention: All Xona Rotor turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

NOTICE: We recommend monitoring a speed sensor wired to your ecu or standalone gauge. Available here: TiALSport TSG-1 Turbine Speed Gauge Kit and Accessories – TiALSport Outlet (tialsport-outlet.com





THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
