Introducing the XRC5357S which has Uprated Speed and Flow of what was previously named XR5757S
Compressor wheel - 53mm Inducer / 73mm Exducer.
Turbine Outlet - 57mm
62lb/Minute Flow Rating
300-620HP Applications
Variable preload angular contact bearings
Twin gas ring seals at the compressor and turbine
High strength, lightweight stainless steel center housing
Full hydraulic damping of the rotating assembly
Integrated oil contaminate filter
M62 race material allows higher temperature operation
Metallic bearing cages
Product Information
The revolutionary UHF™ aero XR57S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

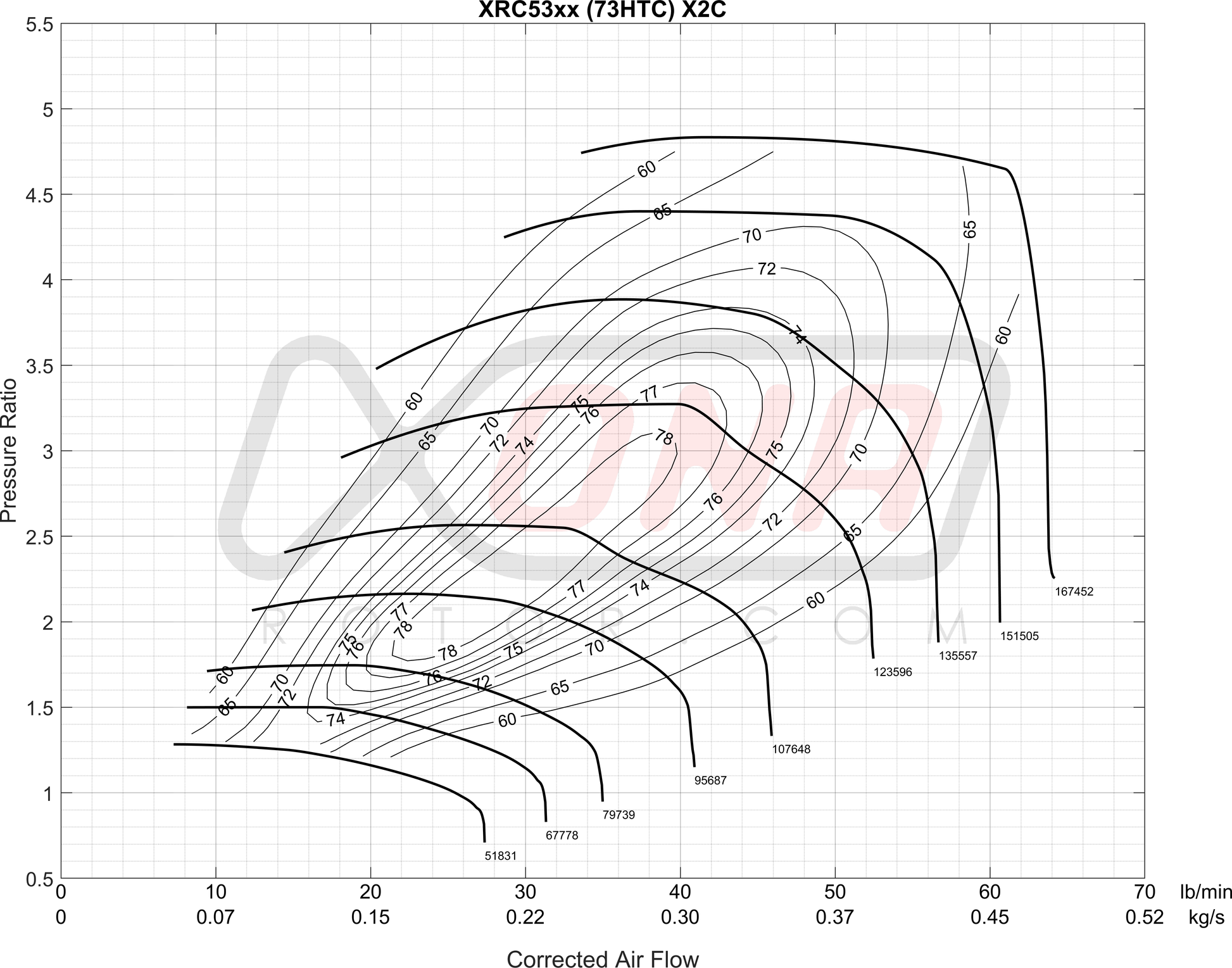

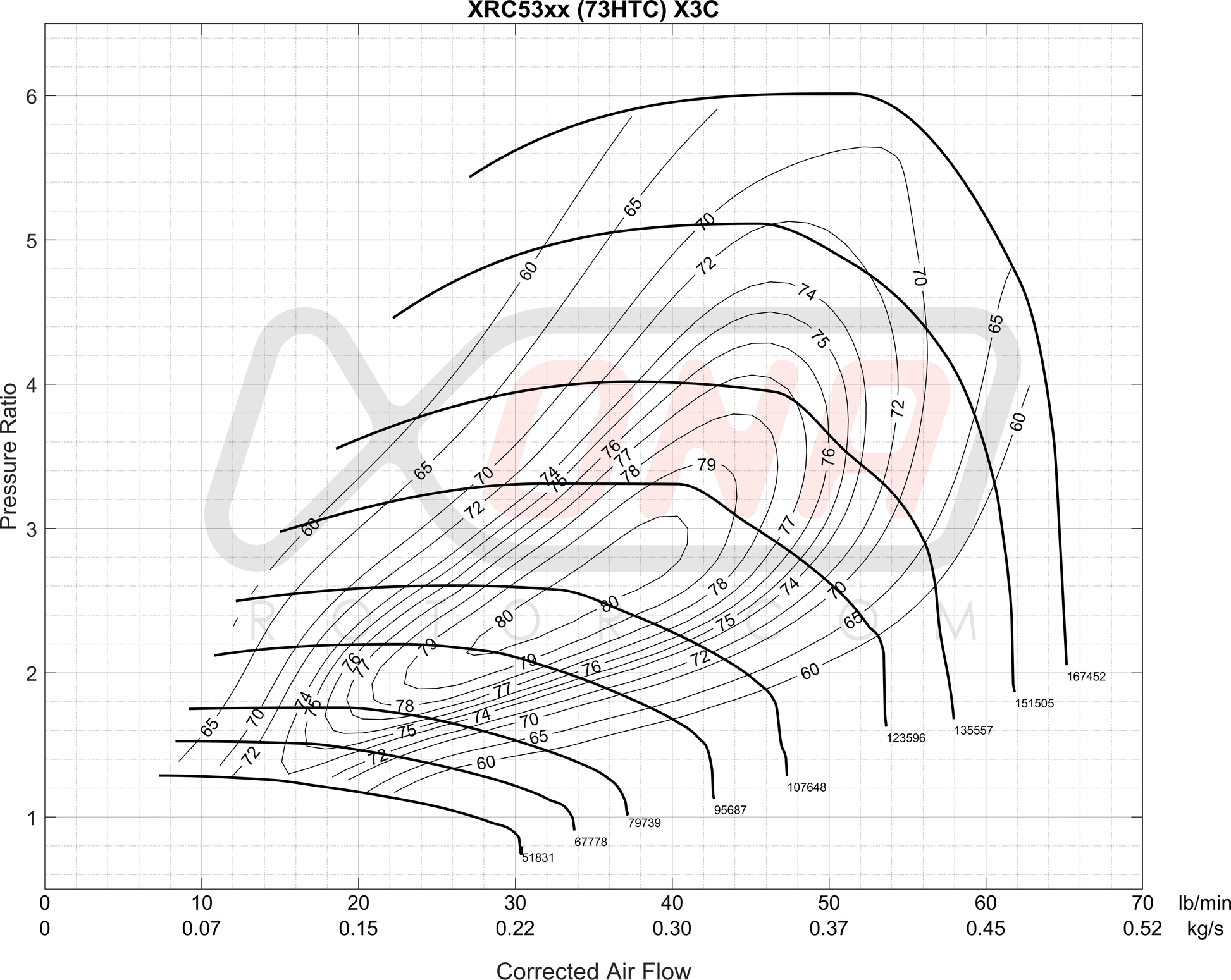

This turbocharger is available in either an X2C or X3C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
