Introducing the XRC6469S which has Uprated Speed and Flow of what was previously named XR8269S
Compressor wheel - 64mm Inducer / 88mm Exducer.
Turbine Outlet - 69mm
94lb/Minute Flow Rating.
500-940HP Applications.
Variable preload angular contact bearings.
Twin gas ring seals at the compressor and turbine.
High strength, lightweight stainless steel center housing.
Full hydraulic damping of the rotating assembly .
Integrated oil contaminate filter.
M62 race material allows higher temperature operation.
Metallic bearing cages.
Product Information
The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

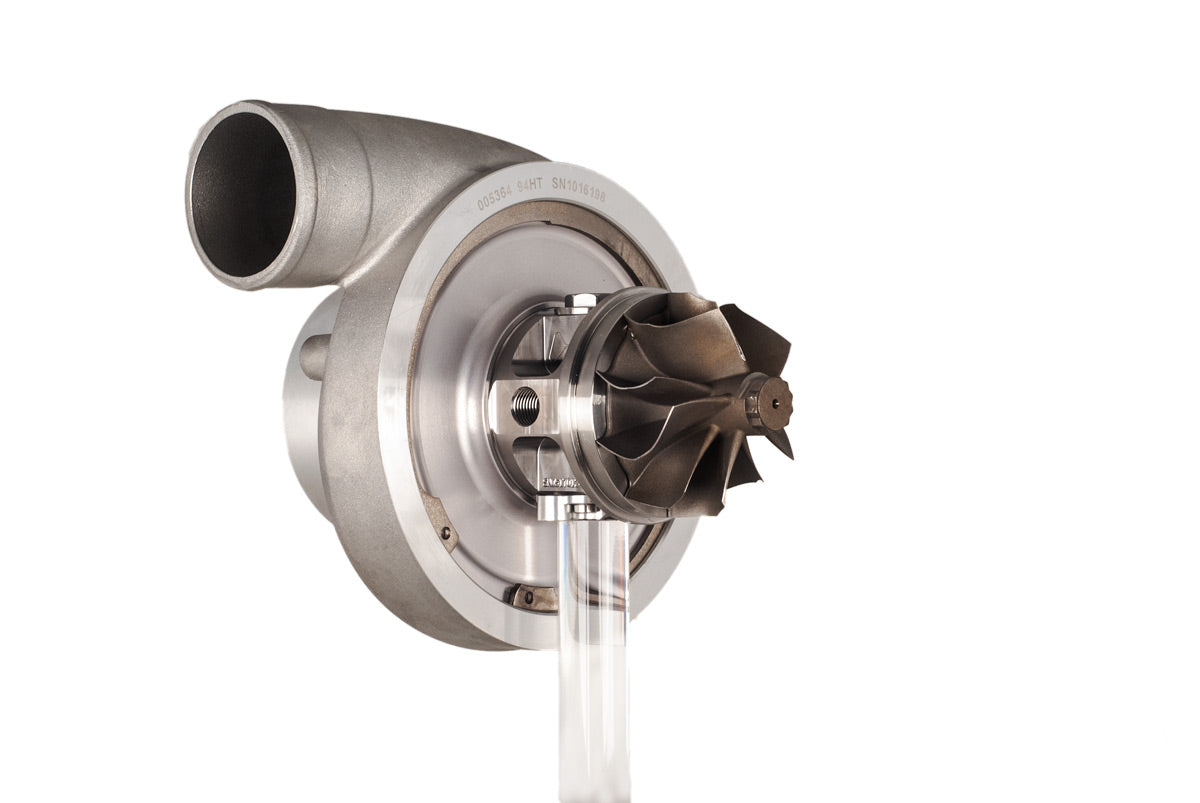

This turbo uses our 64mm compressor wheel, which is paired to the ground breaking 69mm UHF™ turbine wheel that outflows the competitor's much larger turbine wheels. By having a smaller turbine wheel, rotating mass is significantly reduced which results in greater response and overall improved drivability. All of the flow, none of the lag.

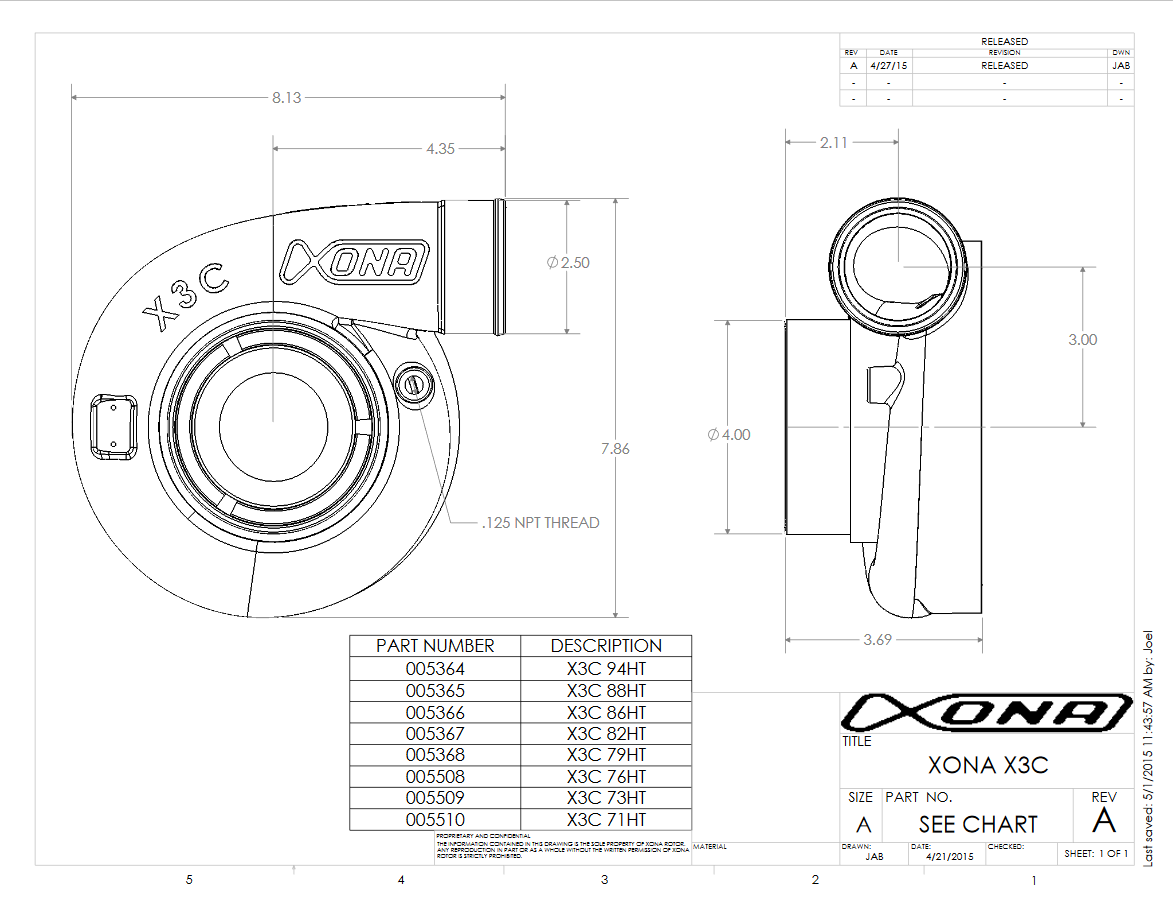

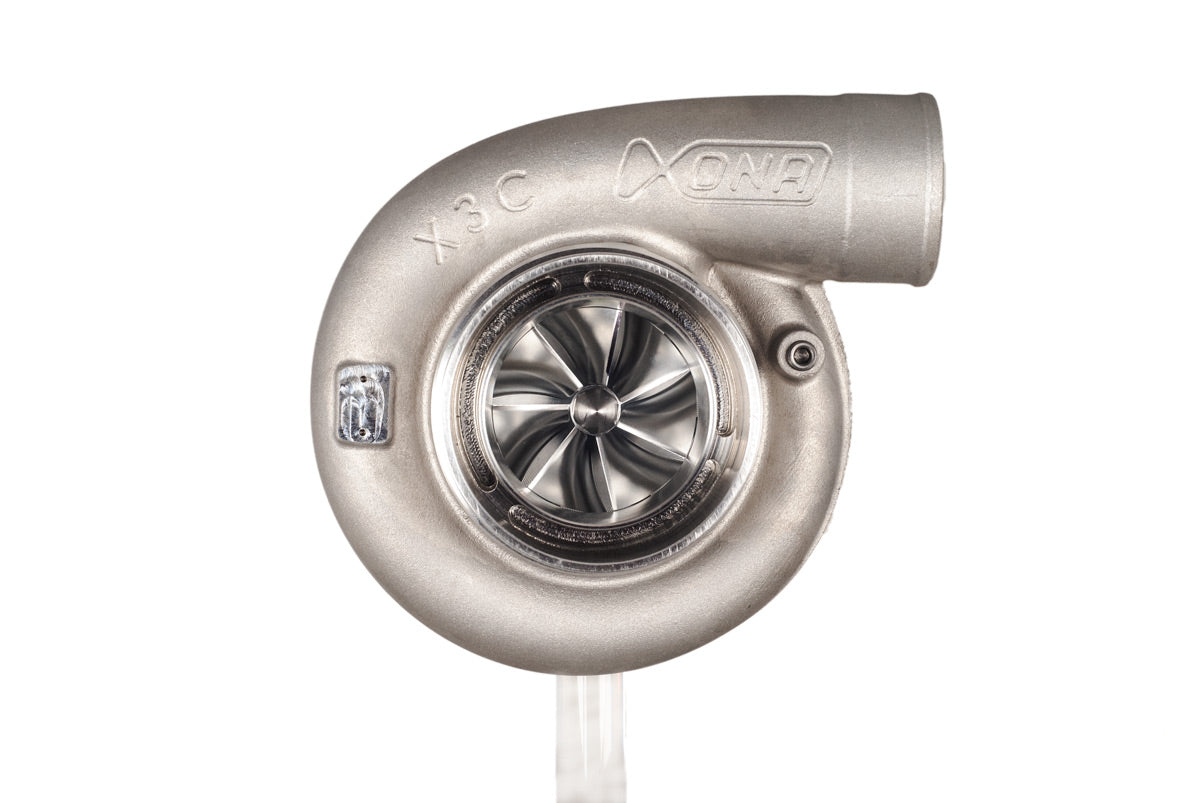

This turbocharger is available in an X3C cover to maximize flow while remaining compact.
