TiALSport Outlet

XRC7269S Ball Bearing Turbocharger

XRC7269S Ball Bearing Turbocharger

13145

$2,166.00 USD
$2,166.00 USD
Sale Sold out
Shipping calculated at checkout.

The NEW XRC7269S is the first launch of the XRC Compressor Aero. XRC is a revision of the beloved HTC aero that has been a staple in the Xona Rotor line-up. The XRC revision has an uprated speed and flow rating and is engineered to maximize efficiency for Medium to High Pressure Ratio (PR) scenarios

  • Compressor wheel - 72mm Inducer / 99mm Exducer.
  • Turbine Outlet - 69mm
  • 105lb/Minute Flow Rating.
  • 550-1100HP Applications.
  • Variable preload angular contact bearings.
  • Twin gas ring seals at the compressor and turbine.
  • High strength, lightweight stainless steel center housing.
  • Full hydraulic damping of the rotating assembly.
  • Integrated oil contaminate filter.
  • M62 race material allows higher temperature operation.
  • Metallic bearing cages.

Product Information

The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

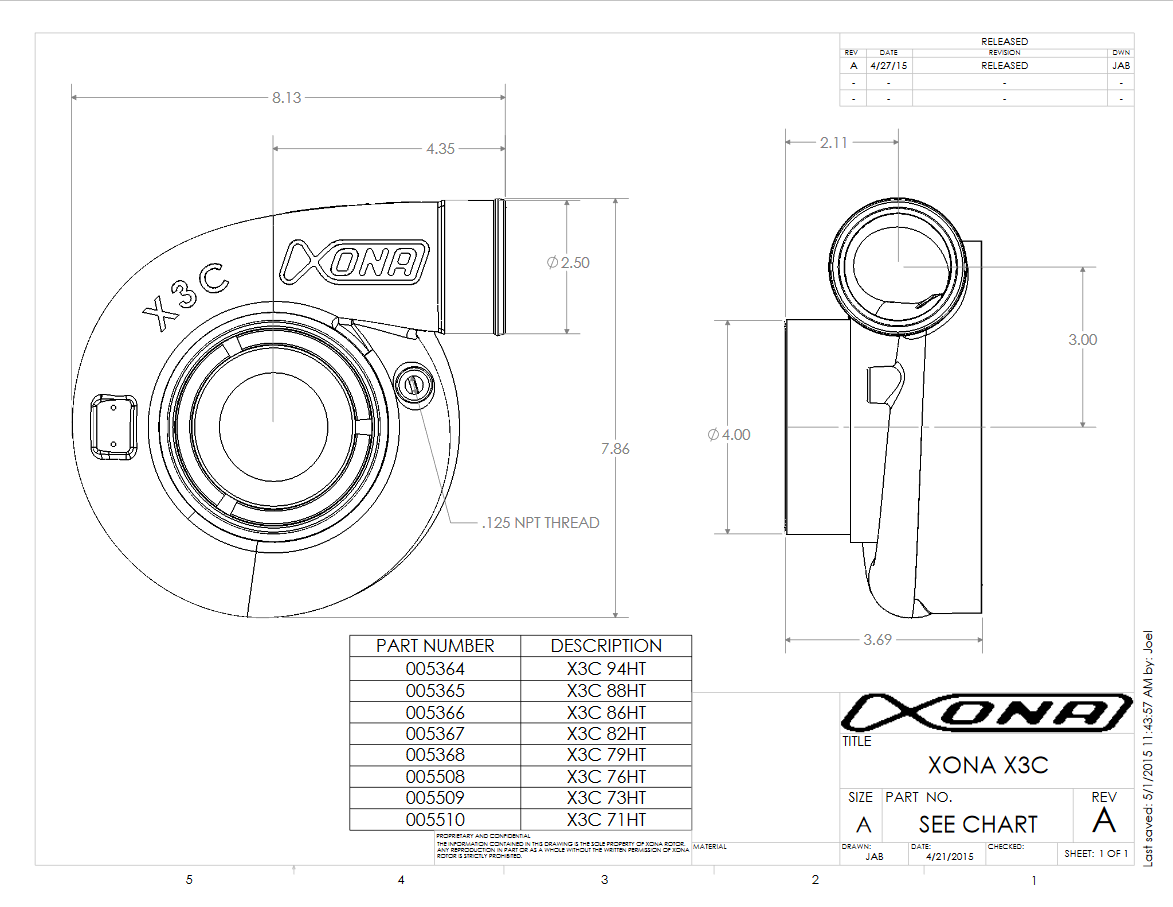

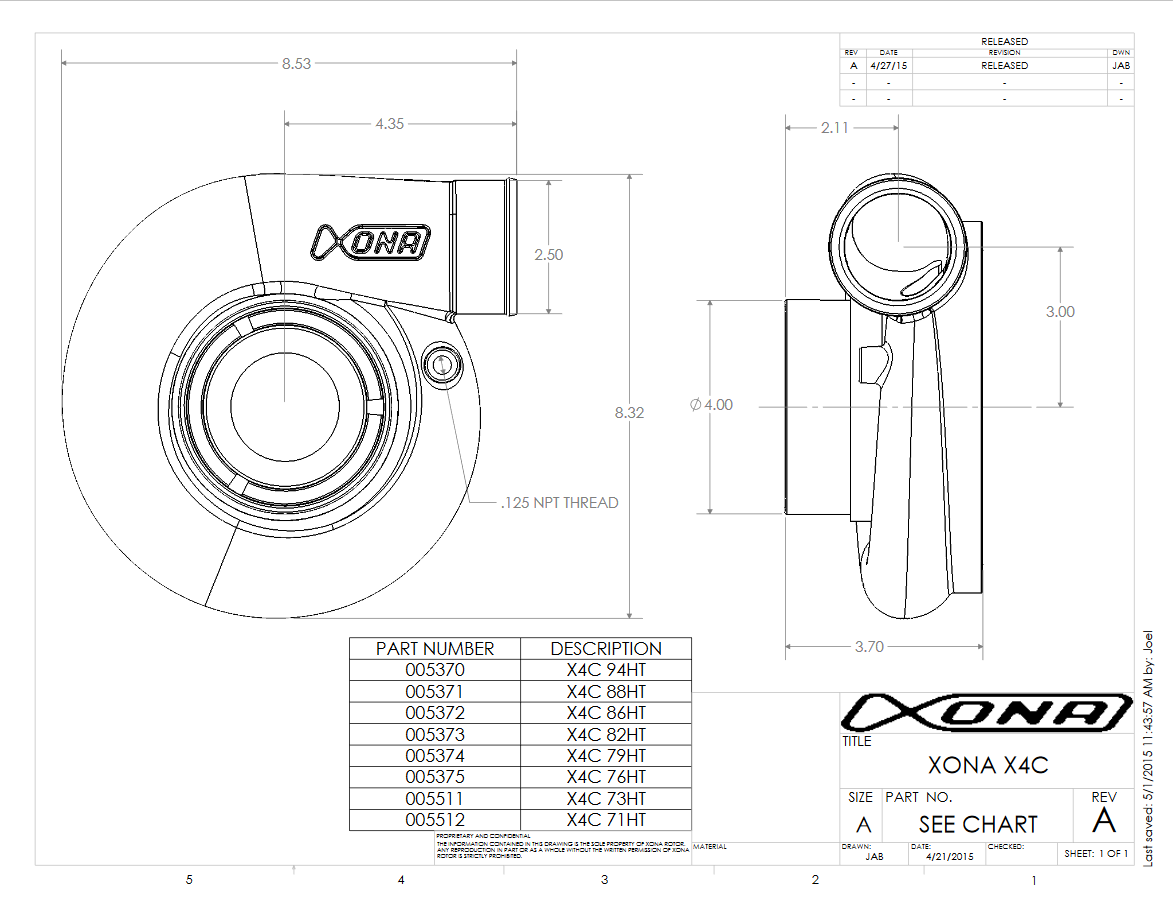

This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.


Attention: All Xona Rotor turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.


THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
View full details
