XRE7169S Ball Bearing Turbocharger

XRE7169S Ball Bearing Turbocharger

SKU:008868

Regular price $2,545.00 USD
Regular price Sale price $2,545.00 USD
Sale Sold out
Shipping calculated at checkout.

With the brand new Xona Rotor HTE aero, optimized for high pressure ratios and extreme shaft speeds!

Component Details


  • Compressor wheel - 70.9mm Inducer / 92.1mm Exducer.
  • Turbine Outlet - 69mm UHF
  • 750-1200HP Applications.
  • Variable preload angular contact bearings.
  • Twin gas ring seals at the compressor and turbine.
  • High strength, lightweight stainless steel center housing.
  • Full hydraulic damping of the rotating assembly.
  • Integrated oil contaminate filter.
  • M62 race material allows higher temperature operation.
  • Metallic bearing cages.

Product Information

The revolutionary UHF aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

The XRE7169S is the pinnacle of flow for 35r sized turbos with compressor design optimized for speed matching to the UHF 69S turbine wheel which results in greater response, overall improved drivability and impressive flow.

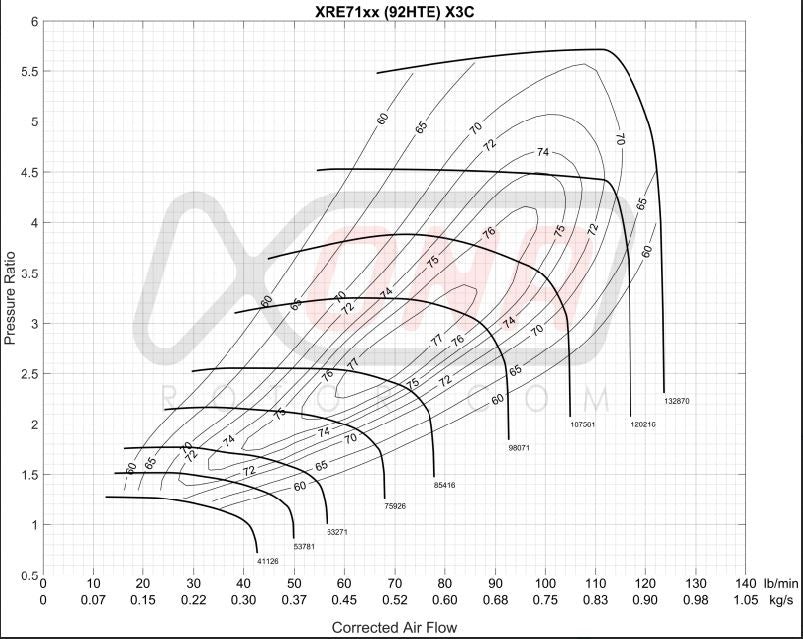

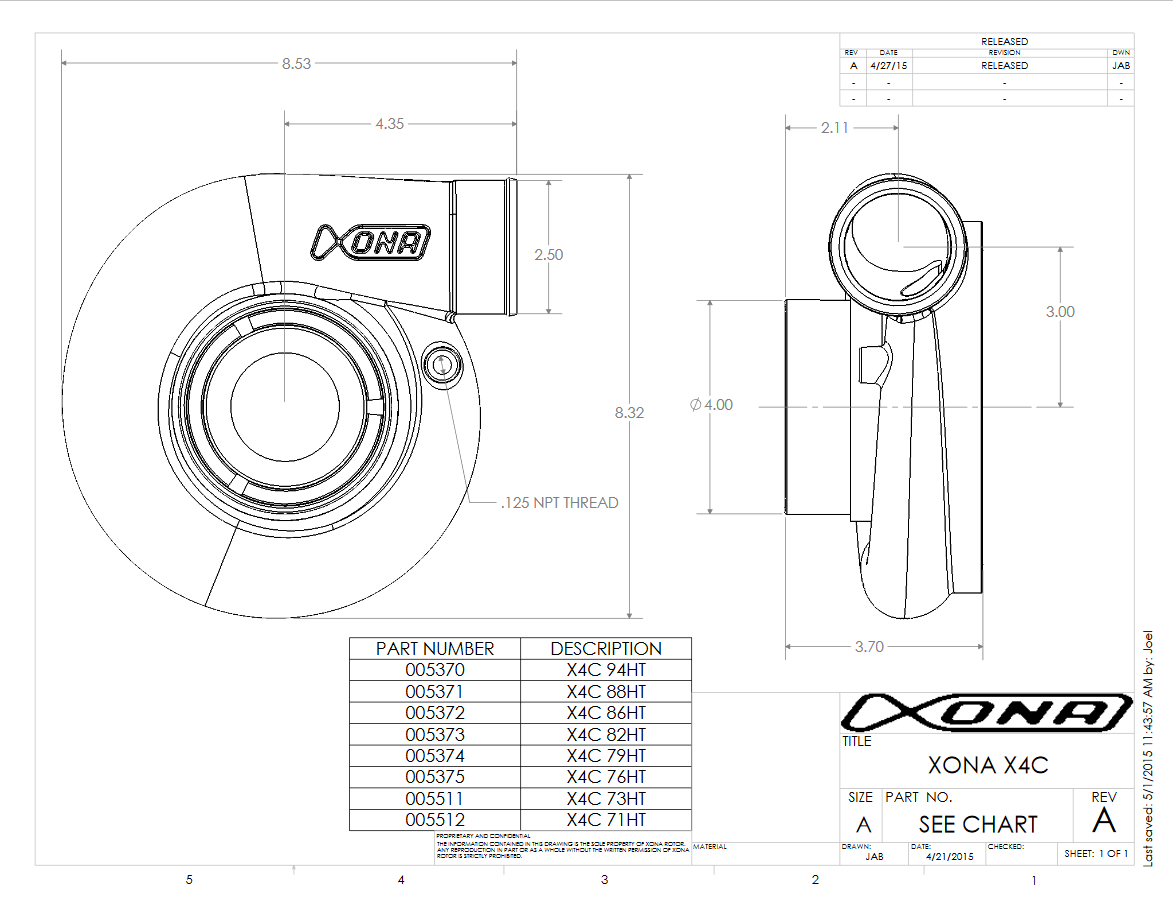

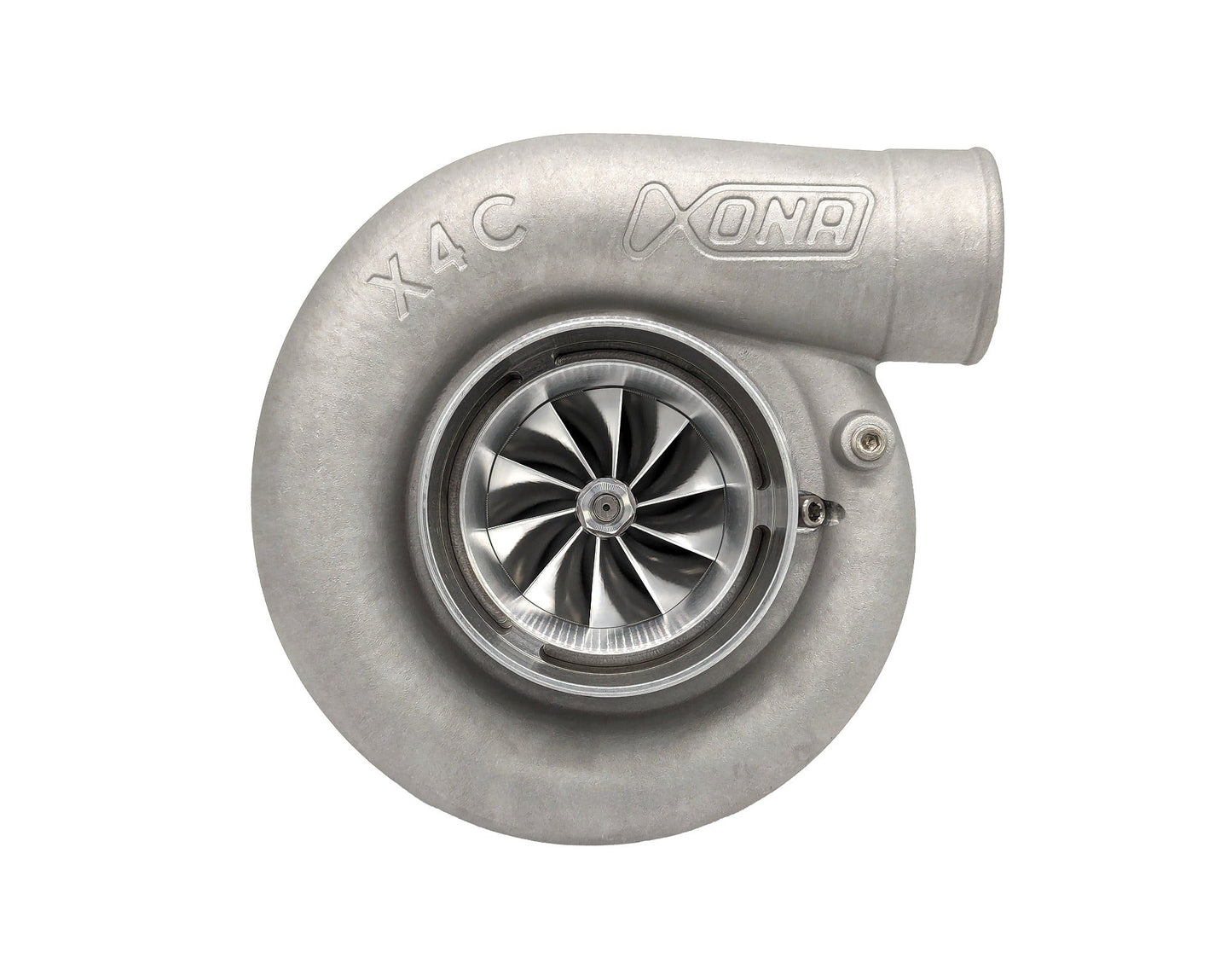

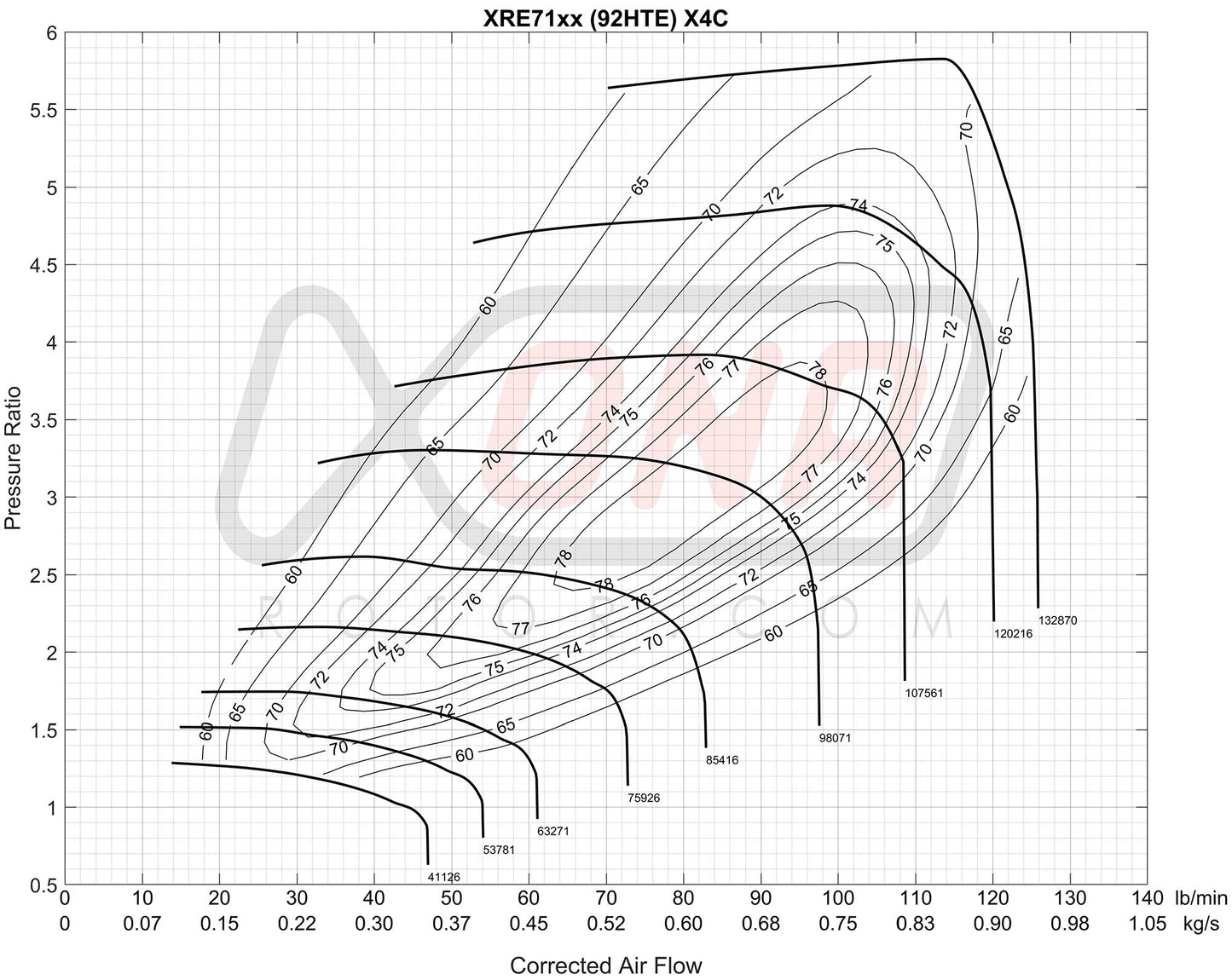

This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.

Attention: All Xona Rotor turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.

NOTICE: We recommend monitoring a speed sensor wired to your ecu or standalone gauge. Available here: TiALSport TSG-1 Turbine Speed Gauge Kit and Accessories – TiALSport Outlet (tialsport-outlet.com





THIS PRODUCT IS FOR COMPETITION USE ONLY. ALL OTHER USES ARE CONTRARY TO FEDERAL LAW. IF YOU INTEND TO USE THIS PRODUCT FOR HIGHWAY OR NON-COMPETITION OFF-ROAD PURPOSES DO NOT PURCHASE OR INSTALL THIS PRODUCT. THIS PRODUCT IS NOT FOR SALE OR USE IN CALIFORNIA ON ANY TYPE OF EMISSION CONTROLLED VEHICLE.
